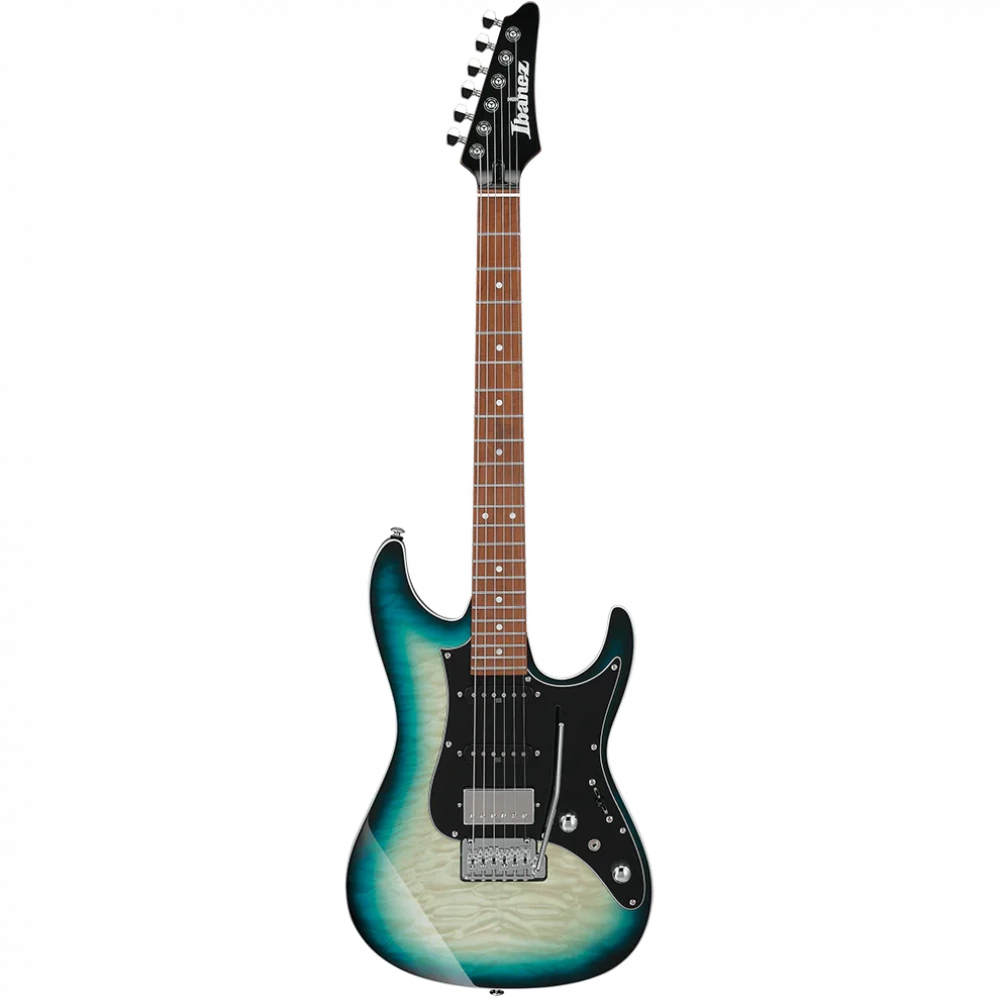

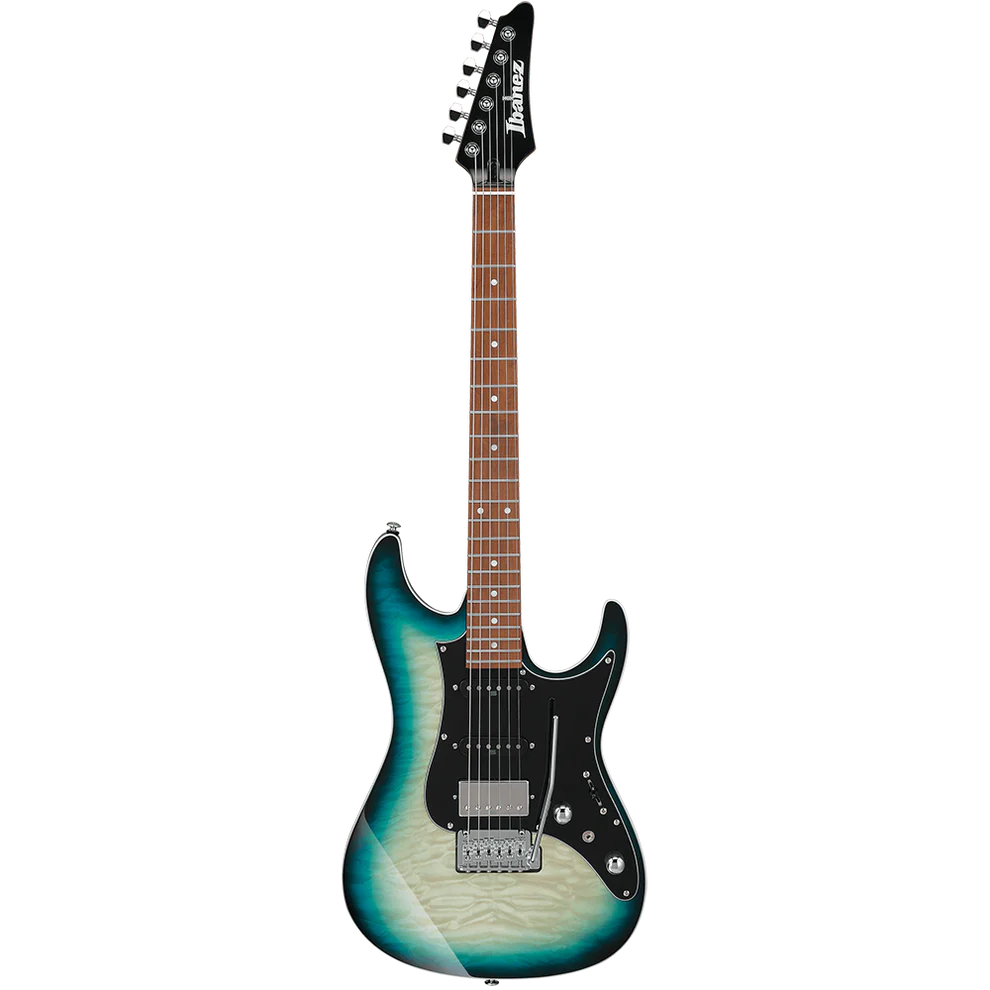

Ibanez AZ24P1QM-DOB — AZ Premium Series Electric Guitar with Gig Bag

The Ibanez AZ24P1QM-DOB combines upscale aesthetics and player-focused ergonomics in a versatile instrument designed for modern musicians. With a striking quilted maple top over a chambered North American alder body, an S-TECH WOOD roasted maple neck and fretboard, Quantum HSS pickup configuration with coil-splitting, premium Gotoh hardware, and a vibrant Deep Ocean Blonde flat satin finish, it includes a padded gig bag for secure transport. This 2,000-word overview covers every aspect—tonewood selection, construction techniques, electronics, hardware specs, ergonomic features, finish process, sustainability, care guidelines, and the AZ Premium lineage—culminating in a clear white-and-gray specification table.

1 | Tonewood Selection & Body Construction

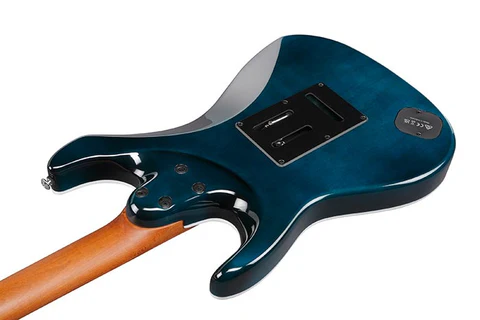

At the heart of the AZ24P1QM-DOB lies a chambered body crafted from North American alder, renowned for its warm low end, balanced midrange, and lively treble response. Strategic chambering reduces overall weight by approximately 10%, enhancing player comfort during extended sessions and contributing to improved acoustic resonance when played unplugged. Topping this alder foundation is a 3-ply quilted maple veneer, selected for its depth of figure and tonal brightness. The maple top not only offers visual flair but also adds a touch of articulate crispness to the guitar's sonic profile. Each body is CNC-routed with precise Core Chamber cavities, then hand-sanded to ensure seamless transitions between contours and ergonomic bevels for the chest, forearm, and belly areas.

2 | Neck Craftsmanship — S-TECH WOOD Roasted Maple

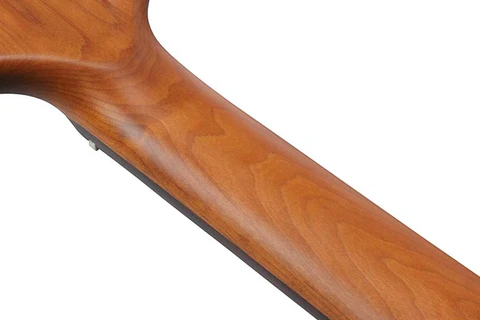

Ibanez’s proprietary S-TECH WOOD process thermally treats the one-piece maple neck and fretboard under controlled heat and humidity. This treatment expels moisture, relieves internal stress, and increases hardness, resulting in a neck that resists seasonal warping and demands fewer truss-rod adjustments over time. The roasting process imparts a warm amber hue and a smooth, “broken-in” feel from the very first note. The neck profile features an "Oval C" shape, measuring 0.83" at the first fret and 0.93" at the twelfth fret, providing an ideal balance of chordal comfort for rhythm work and flat, fast access for lead lines. The fretboard incorporates a 10"–14" compound radius: 10" at the nut for easy chording, flattening out to 14" near the body for bend-free soloing.

3 | Frets & Fretboard Details

Complementing the compound-radius fretboard are 22 jumbo stainless-steel frets, chosen for their superior hardness, corrosion resistance, and bright tonal clarity. Each fret undergoes hand-leveling and meticulous end-crowning by skilled luthiers, ensuring uniform height and smooth edges. The fretboard edges are lightly chamfered to eliminate sharp tangs, promoting a fluid feel during positional shifts. Glow-in-the-dark Luminlay side-dot markers embedded into the fretboard’s edge provide clear visual cues under low-light conditions, guiding players across the extended 24-fret range.

4 | Electronics — Quantum HSS Configuration

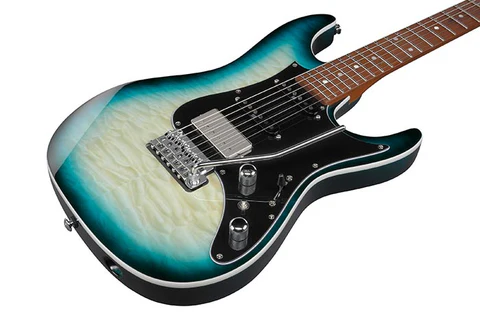

The AZ24P1QM-DOB features a versatile Quantum HSS pickup layout: an alnico-voiced Quantum humbucker at the bridge and single-coil Quantum pickups at the middle and neck positions. This configuration covers a spectrum from thick, driven tones to glassy cleans. A push-pull tone pot splits the bridge humbucker into single-coil mode, unlocking additional tonal textures. A five-way blade switch provides access to traditional and mixed pickup combinations. All electronics are housed within shielded control and pickup cavities lined with conductive paint, significantly reducing electromagnetic interference and delivering a quiet performance environment in both stage and studio settings.

5 | Hardware — Gotoh Precision Components

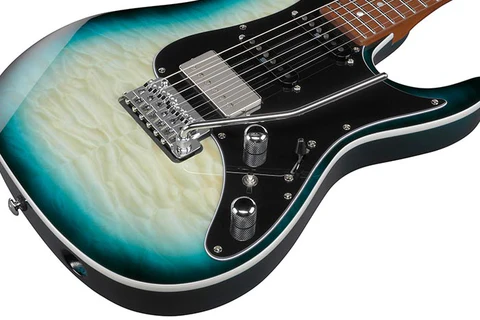

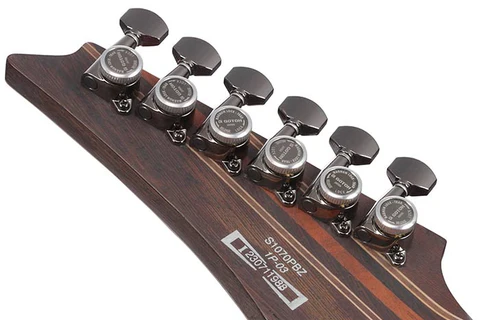

Tuning stability and hardware reliability are paramount on the AZ24P1QM-DOB. It employs a Gotoh T1502 two-point tremolo bridge for smooth, expressive vibrato and precise return-to-pitch, featuring stainless-steel saddles and a high-mass block for enhanced sustain. Gotoh sealed die-cast tuning machines with a 16:1 gear ratio ensure accurate tuning adjustments and prevent string slippage. A Graph Tech TUSQ XL nut further stabilizes tuning by providing uniform string spacing and balanced harmonic transfer. The result is rock-solid stability even under aggressive playing techniques and dive bombs.

6 | Control Layout & Ergonomic Features

The control layout is intuitive yet comprehensive: a master volume knob, a master tone knob with push-pull coil-split function, and a five-way pickup selector switch. The knobs are knurled for secure grip, and their positioning allows quick adjustments without hindering pickstroke. Body contouring includes a deep forearm cut, a beveled chest cut, and a belly carve for seated comfort—features honed via extensive player feedback to minimize contact fatigue. The subtle armrest bevel softens the edge underneath the strumming arm, and a contoured heel joint opens access to the upper register while maintaining structural integrity.

7 | Finish & Aesthetics — Deep Ocean Blonde

The Deep Ocean Blonde flat satin finish is applied in multiple thin, UV-cured coats to preserve wood vibration and emphasize the quilted maple’s depth and texture. Its matte appearance diffuses glare under stage lighting, while resisting fingerprints and smudges. The subtle gradient from a pale blonde center to darker edges enhances the 3D effect of the quilted maple figure. Hardware and control knobs feature a matte black finish, harmonizing with the top’s blonde hues to create a modern, eye-catching aesthetic that suits any genre or stage setup.

8 | Padded Gig Bag & Transport

Each AZ24P1QM-DOB ships with a high-quality padded gig bag designed for mobility and protection. The bag’s exterior is constructed from water-resistant polyester, while the interior features a plush lining to cushion the guitar against impacts. Adjustable shoulder straps and a reinforced handle provide comfortable carrying options. An external accessory pocket offers convenient storage for cables, picks, tuners, and documentation. Heavy-duty zippers ensure secure closure and long-term durability.

9 | Sustainability & Responsible Manufacturing

Ibanez sources North American alder from FSC-certified suppliers and uses sustainably managed maple for neck construction. The S-TECH WOOD process minimizes waste by reducing the need for corrective truss-rod adjustments, extending the neck’s long-term stability. Finish coatings utilize low-VOC, waterborne resins, and factory offcuts are recycled or used as biomass fuel. Packaging incorporates 80% post-consumer recycled cardboard, printed with soy-based inks, reflecting Ibanez’s commitment to environmental stewardship.

10 | Care & Maintenance Recommendations

To preserve optimal performance, wipe down the guitar with a soft microfiber cloth after each use, particularly the fretboard and hardware. Maintain ambient humidity between 40% and 50% to prevent wood drying or swelling. Change strings regularly and lubricate the nut and tremolo pivot points with PTFE or graphite powder to reduce friction. For extended periods of non-use, store the guitar in its gig bag within a climate-controlled environment. Schedule a professional setup every 6–12 months to adjust neck relief, action, and intonation for evolving playing preferences.

11 | Use-Case Scenarios & Versatility

Studio Recording: The chambered body and Quantum pickups provide a balanced tonal signature ideal for close-mic recording and layering.
Live Performance: QuickSwitch coil-split, robust hardware, and stable tremolo deliver confidence on stage.
Home Practice: Ergonomic bevels and lightweight construction reduce fatigue during marathon practice sessions.
Genre Range: From crisp cleans and spanky funk rhythms to saturated overdrive and soaring leads, coil-splitting extends the instrument’s sonic palette.
Visual Impact: The Deep Ocean Blonde quilted maple top creates a distinctive stage presence that complements any lighting rig.

12 | Warranty & Support

The AZ24P1QM-DOB is backed by Ibanez’s two-year limited manufacturer warranty on materials and workmanship, extendable via online registration. Coverage includes electronics, hardware, and finish defects, excluding normal wear and misuse. Authorized Ibanez service centers worldwide provide professional repairs and genuine replacement parts, ensuring the longevity of your instrument.

Specifications
