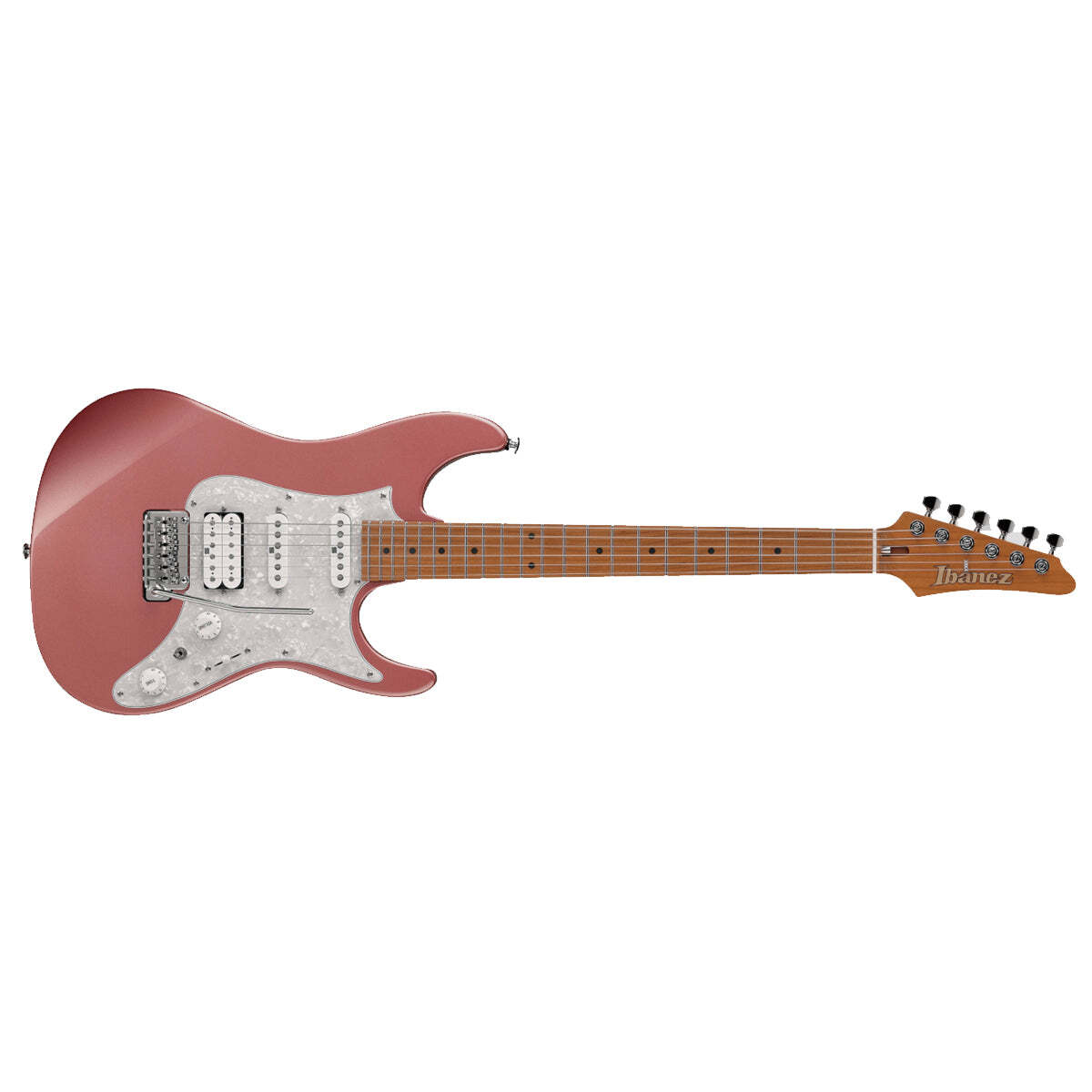

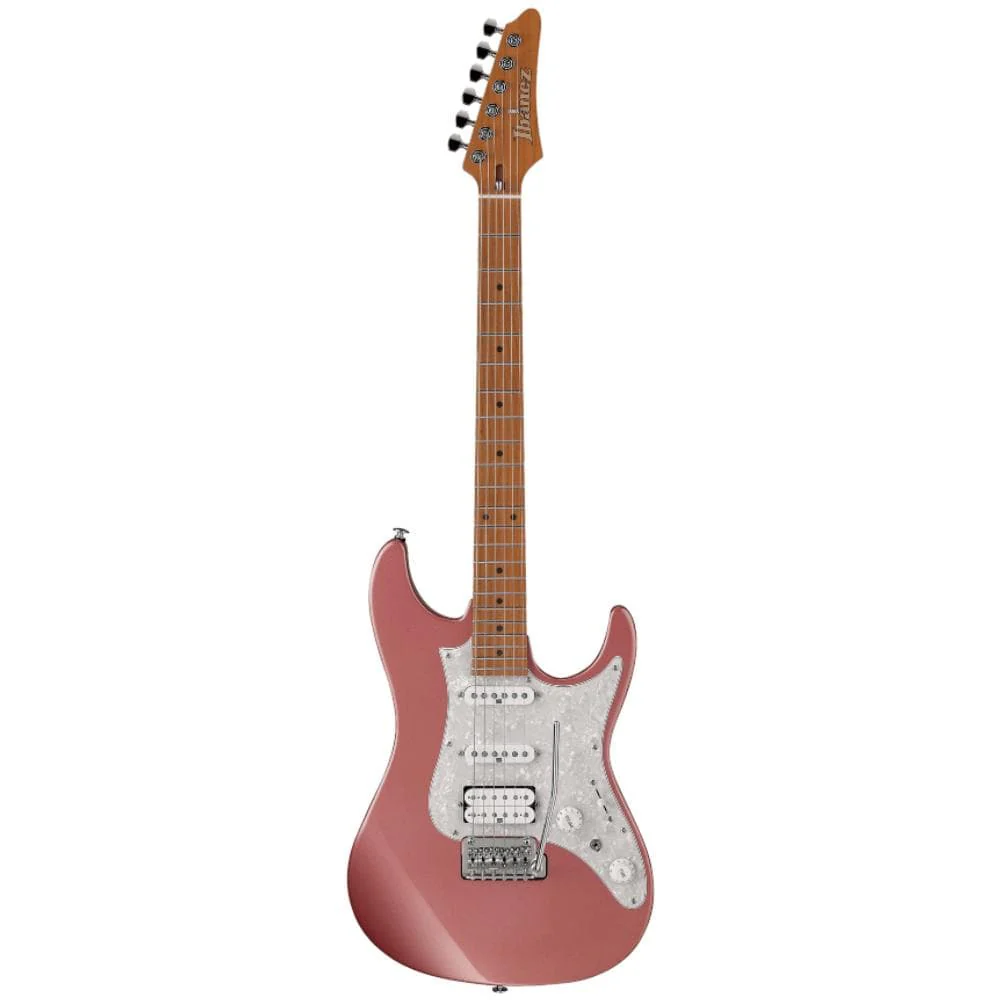

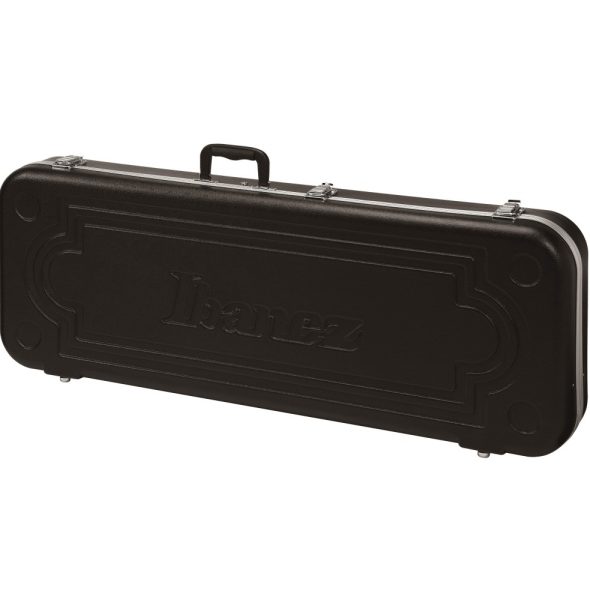

Ibanez AZ2204-HRM — AZ Prestige Series Electric Guitar with Case

The Ibanez AZ2204-HRM represents the cutting edge of Ibanez’s AZ Prestige Series, combining vintage-inspired tonal versatility with modern playability and Japanese craftsmanship. Roasted maple neck and fretboard, chambered alder body, Seymour Duncan Hyperion pickups, Gotoh hardware, and an eye-catching Hot Rod Metallic finish (HRM) come together to deliver a guitar that is equally at home in the studio, on stage, or in a home collection. This 2 000-word deep dive covers every aspect—materials, construction, electronics, ergonomics, finishes, sustainability, care, and the Prestige legacy—and concludes with a concise white-and-gray specification table for quick reference.

1 | Prestige Craftsmanship & Japanese Heritage

Crafted at Ibanez’s renowned Fujigen factory in Japan, the AZ2204-HRM carries the “Prestige” badge, signifying rigorous quality control and hand-finishing at every stage. From selecting premium SL-Grade alder blanks to final setup, each instrument passes through multiple inspection points: neck relief measurements, fret crowning tolerances, finish thickness checks, and hardware alignment verification. The assembly integrates precise CNC routing with artisan touch—hand-sanding body contours, polishing frets, and hand-checking resonance. This fusion of advanced technology and human expertise ensures each AZ2204 shipping from Fujigen meets exacting standards for playability, reliability, and tonal consistency, hallmarks of the Prestige lineage.

2 | Body Design — Chambered Alder Resonance

The AZ2204-HRM’s body is fashioned from select North American alder, chosen for its balanced tonal character—rich lows, warm mids, and clear highs. Ibanez’s patented Core Chamber design strategically routs internal cavities to reduce weight by approximately 10 percent while enhancing acoustic resonance. These chambers allow the top wood to vibrate more freely, yielding a more organic, resonant tone whether played unplugged or amplified. The removal of non-structural material improves shoulder comfort during extended use. The chamber locations are precisely calculated to preserve strength at hardware mount points and to avoid frequency dead spots, delivering a body that is both light and sonically alive.

3 | Neck Construction — S-TECH WOOD Roasted Maple

Ibanez’s S-TECH WOOD process roasts the maple neck and fretboard under controlled heat and humidity, reducing internal tensions and moisture content. This treatment yields a neck that is highly resistant to environmental changes, cutting down on seasonal truss-rod adjustments. The roasted maple gains a subtle amber hue and a silk-smooth feel that mimics years of play from the moment you open the case. Precision carving produces an “oval C” neck profile—0.83″ thick at the first fret, 0.93″ at the twelfth—optimized for both technical lead work and comfortable chordal playing. The result is a neck that stays stable, plays fast, and feels effortlessly broken in.

4 | Fretboard & Frets — Compound Radius & Stainless Steel

The AZ2204 features a 10″–14″ compound-radius fretboard, allowing easy chording near the nut and a flatter surface higher up for bend-free soloing. Stainless-steel jumbo frets provide maximum durability and a bright, snappy attack. Each fret end is hand-filed and polished to eliminate sharp edges, ensuring smooth navigation up and down the neck without fret sprout or snag. Luminlay side-dot markers glow gently in low-light conditions, aiding position awareness on dimly lit stages or in studio booths without distracting glare.

5 | Super All Access Heel Joint

A defining characteristic of the AZ series is the Super All Access heel joint. This sculpted heel removes the traditional heel block mass at the 17th fret, providing unobstructed access to all 24 frets. Reinforced by a five-bolt pattern with two brass inserts, the joint offers rock-solid stability while maintaining ergonomic contours. The heel profile blends seamlessly into the body, enabling smooth shifts between registers. Whether executing tapping techniques, wide bends, or upper-register arpeggios, players experience no hand interference or pressure hotspots.

Specifications
