ort MR500E-OP — MR-Series Dreadnought-Cutaway Electro-Acoustic

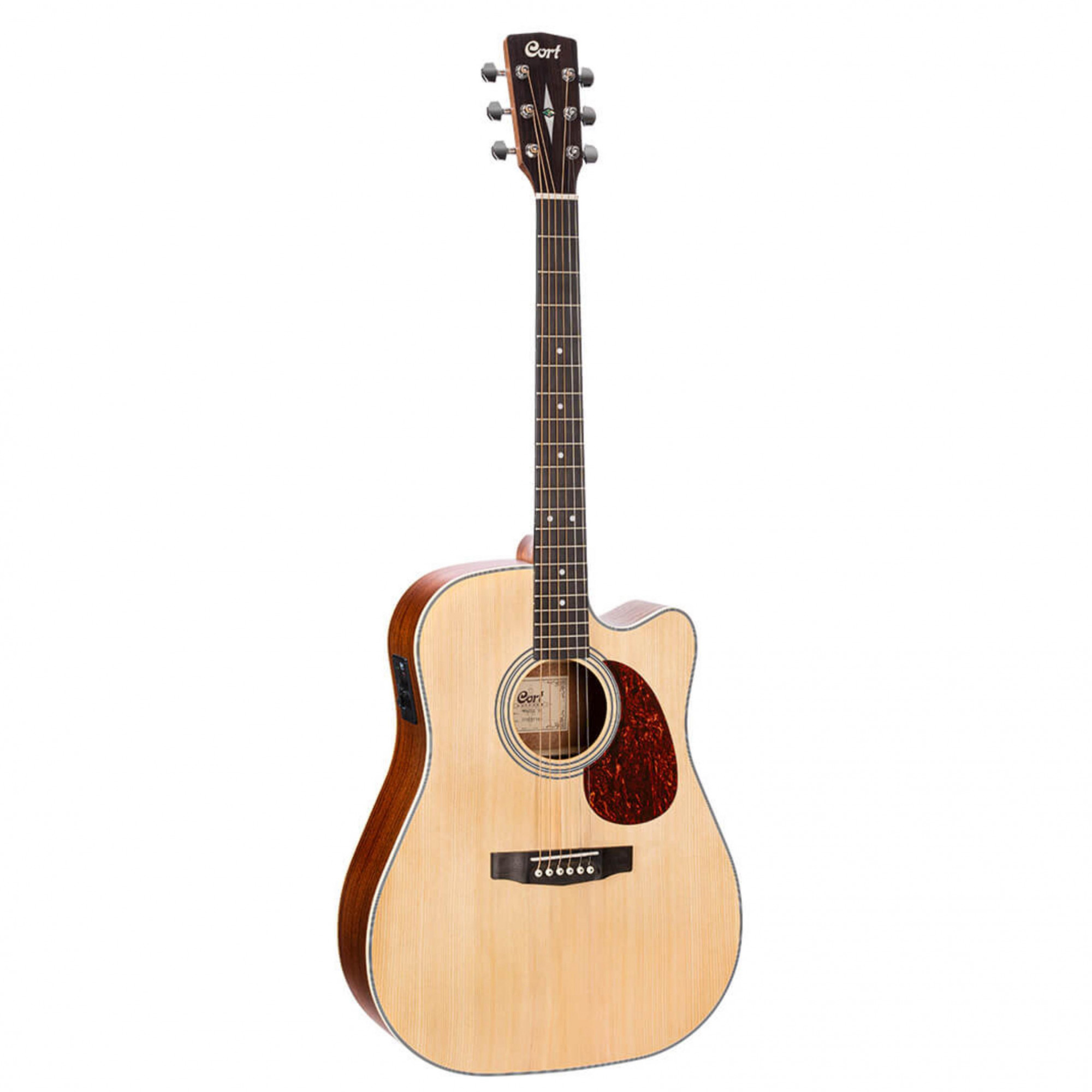

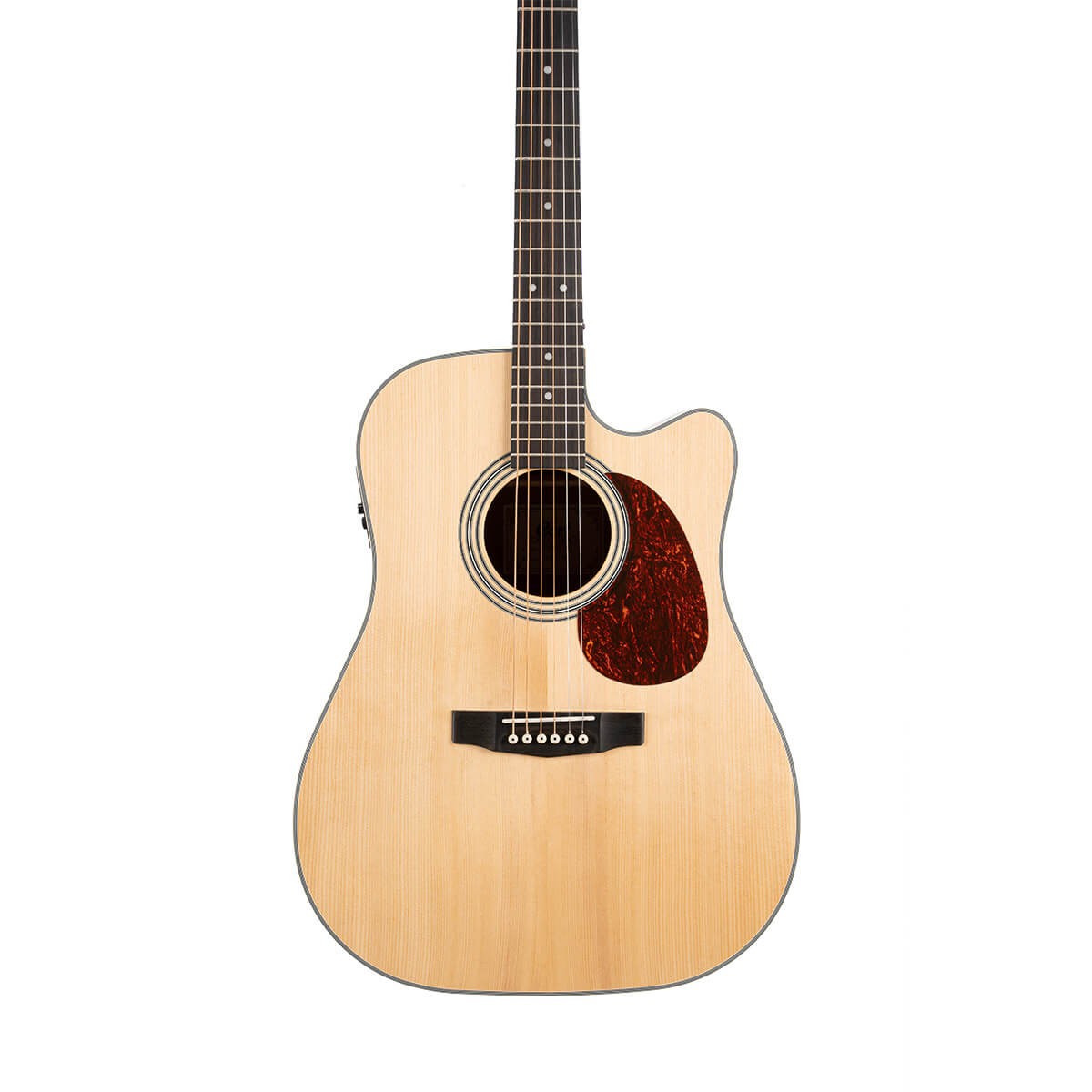

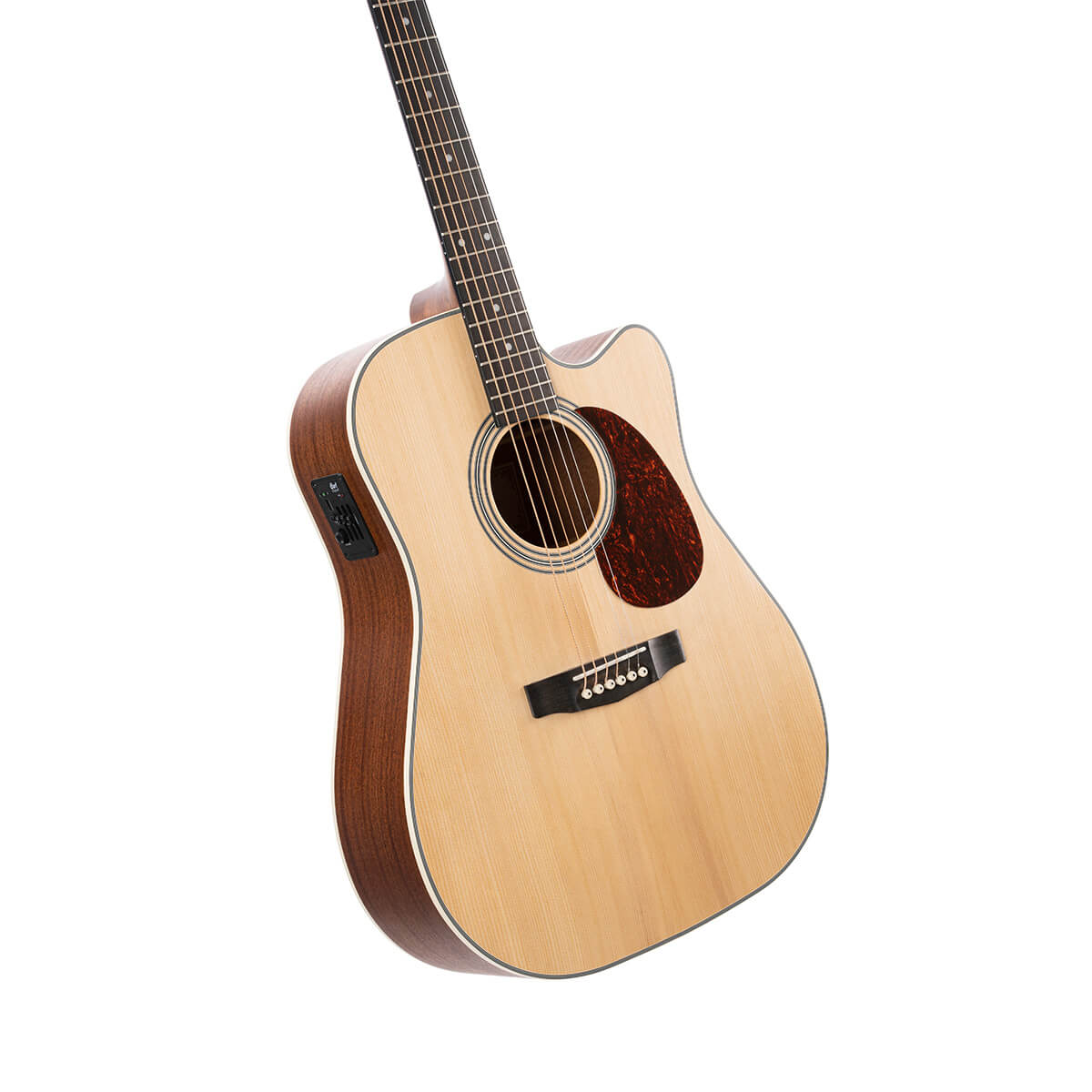

The MR500E-OP folds Cort’s long-running MR philosophy—solid top, tough back, road-worthy neck and plug-and-play electronics—into a modern dreadnought with a sleek open-pore finish. A solid Sitka spruce soundboard, mahogany body, forward-shifted scalloped X-bracing and CE304T preamp yield punch, clarity and stage confidence in equal measure. The deep-dive narrative below unpacks every decision—heritage, wood science, bracing maths, ergonomic details, eco commitments and care tips—then distils the essentials in a quick-scan white/gray spec table.

1 | MR Series DNA — “Modern Revival” in Three Letters

Cort’s MR line launched in 1999 to revive classic dreadnought thunder but fix three historical gripes: (1) heavy, tone-damping finishes; (2) necks set without micro-adjustable dual truss rods; (3) outdated piezo systems that squealed at bar gigs. The “E” suffix added electronics; “OP” flags the open-pore finish that keeps weight low and dynamic snap high. MR500E-OP sits mid-line, balancing solid-top resonance with wallet-safe laminated back strength.

2 | Body Geometry — Dreadnought Lung Capacity, Cutaway Reach

Lower-bout 16″, waist 12″, tail depth 5″ tapering to 4¼″ at neck block. A 3″-radius Venetian cutaway removes the 14-fret barrier, letting players weave melodic hooks beyond fret 17. The enlarged air volume drives sub-200 Hz fundamentals, yet the cutaway and forward-X bracing shape midrange for mix-friendly clarity.

3 | Tone-Wood Matrix — Sitka Spark + Mahogany Warmth

Top. AA Sitka spruce, kiln-balanced to 8 % moisture then thickness-sanded to 2.8 mm centre / 2.6 mm edge—yielding 9:1 stiffness-to-density for strum headroom and fingerstyle nuance.

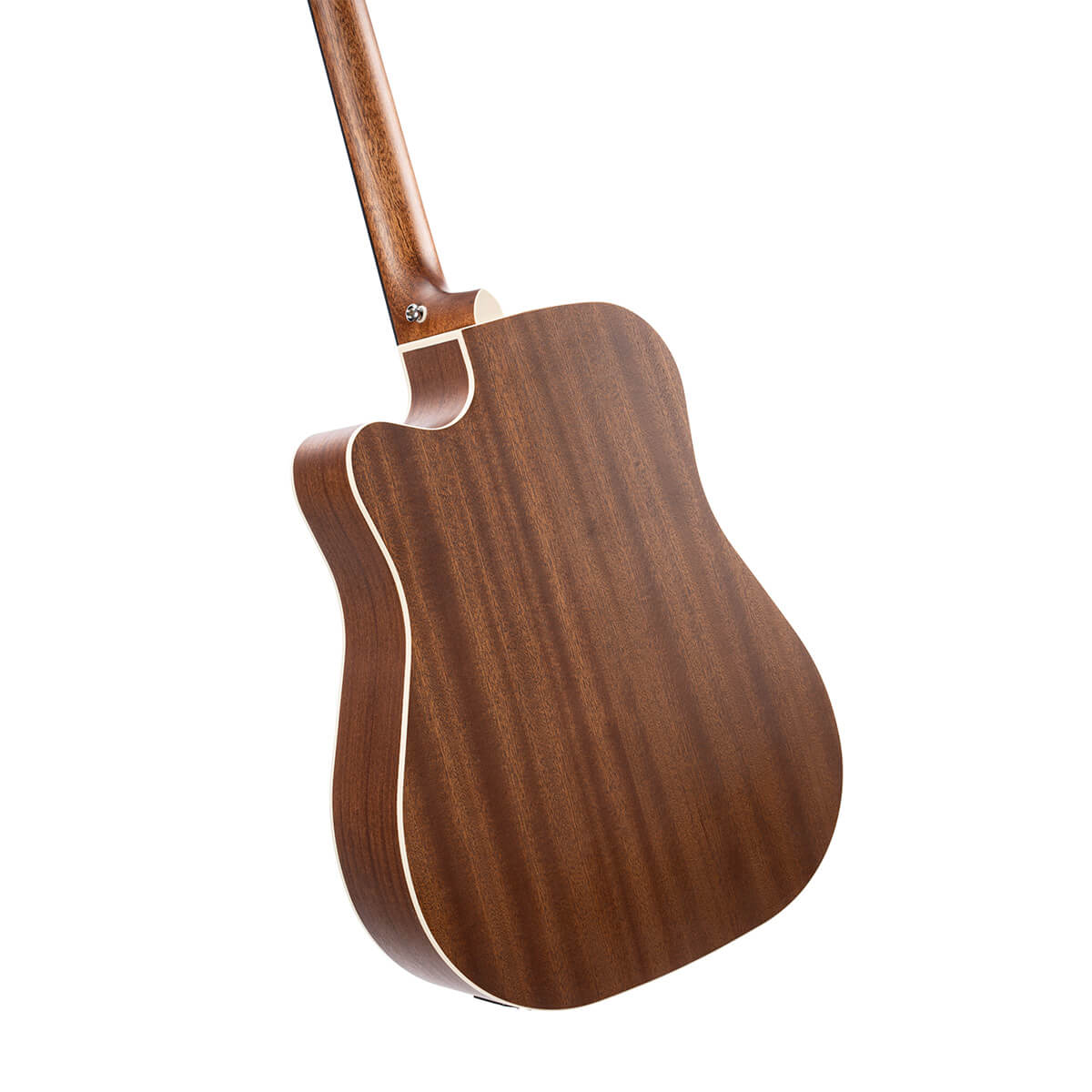

Back & Sides. Laminated African mahogany (Khaya) provides woody mids and crack-resistant touring resilience; ribbon grain glows through the matte sealer.
Neck. One-piece mahogany, slim-C carve, dual-action rod for ±2 mm relief headroom.
Fingerboard & Bridge. Rosewood substitute (current run ovangkol); oiled finish keeps pores breathable.

4 | Bracing Physics — Forward-Shifted Scalloped X

Main spruce X braces intersect 5 mm nearer the sound-hole than standard, enlarging the lower-bout air chamber for dread-level bass. Scallops lower brace mass to 3 mm ridge / 1.8 mm wing tips; two tone bars flank the bridge plate to stabilise spruce grain under medium-gauge (.013) strain. Tapped fundamentals centre on F♯, overtones chart evenly through C♯ 6—ideal for double-tracking without comb filtering.

5 | Finish Logic — Open-Pore Natural

Two coats—water-borne pore sealer plus 80 µm matte poly—shed ≈110 g vs. gloss polyester. Benefits: quicker transient attack, louder acoustic “air,” no mirror glare under LED rigs, and a “played-in” neck feel from day one.

6 | Neck & Feel

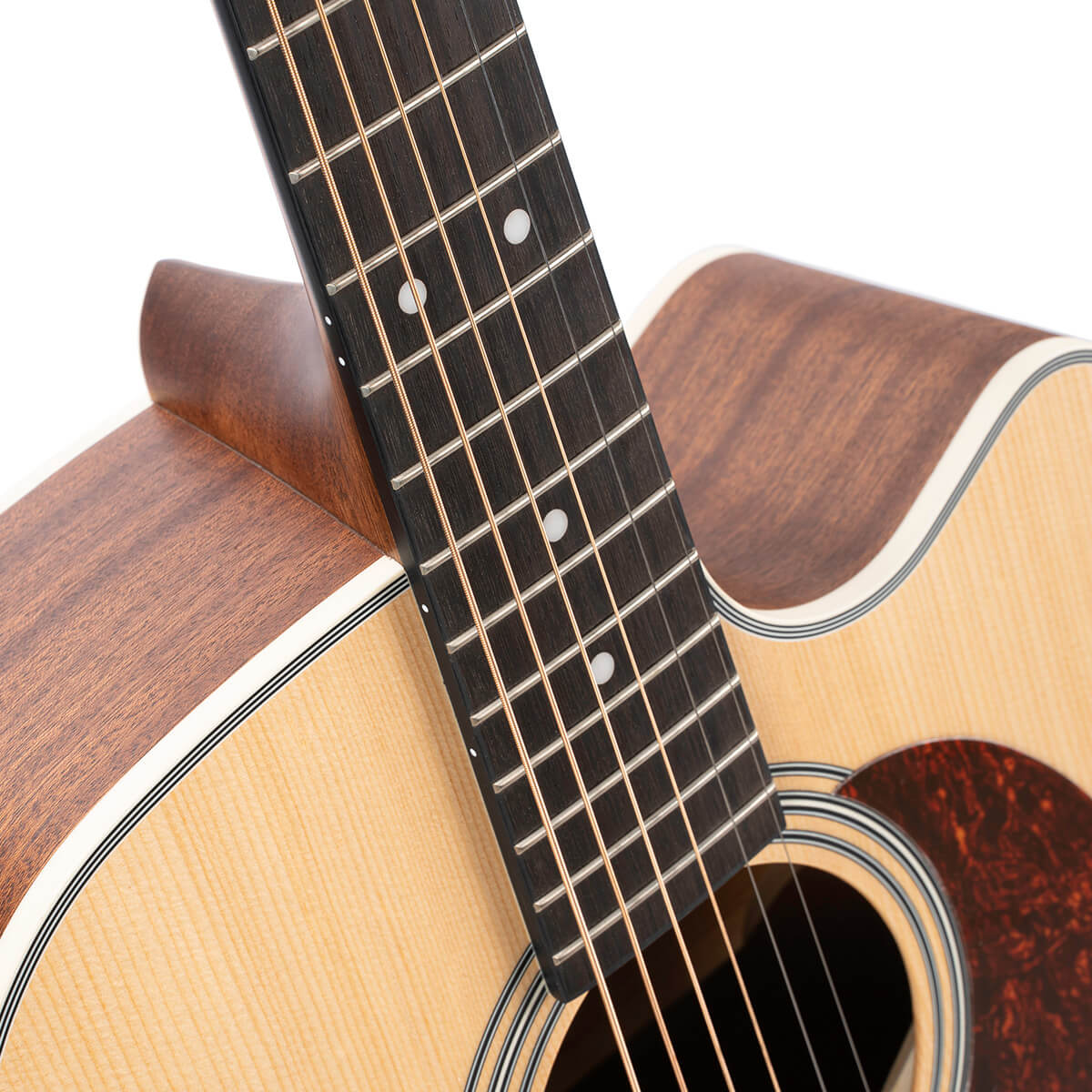

Depth 0.84″ @ 1st fret → 0.89″ @ 9th; 43 mm bone nut squares electric familiarity and acoustic chord spread. A 16″ compound radius carries 20 medium nickel frets, edges rolled and crowns polished mirror. Factory action 2.4 mm (bass) / 2.0 mm (treble) at 12th; saddle height leaves room for down-tuners.

7 | Electronics — Cort CE304T Preamp

Undersaddle Sonicore piezo ➜ CE304T side module (Volume • Bass • Mid • Treble • Phase • Tuner). Phase flip squashes 90 Hz feedback; tuner mutes output for silent string swaps. 500 kΩ output impedance mates with pedalboards/DI; 9 V cell logs ≈90 h amplified.

8 | Hardware Highlights

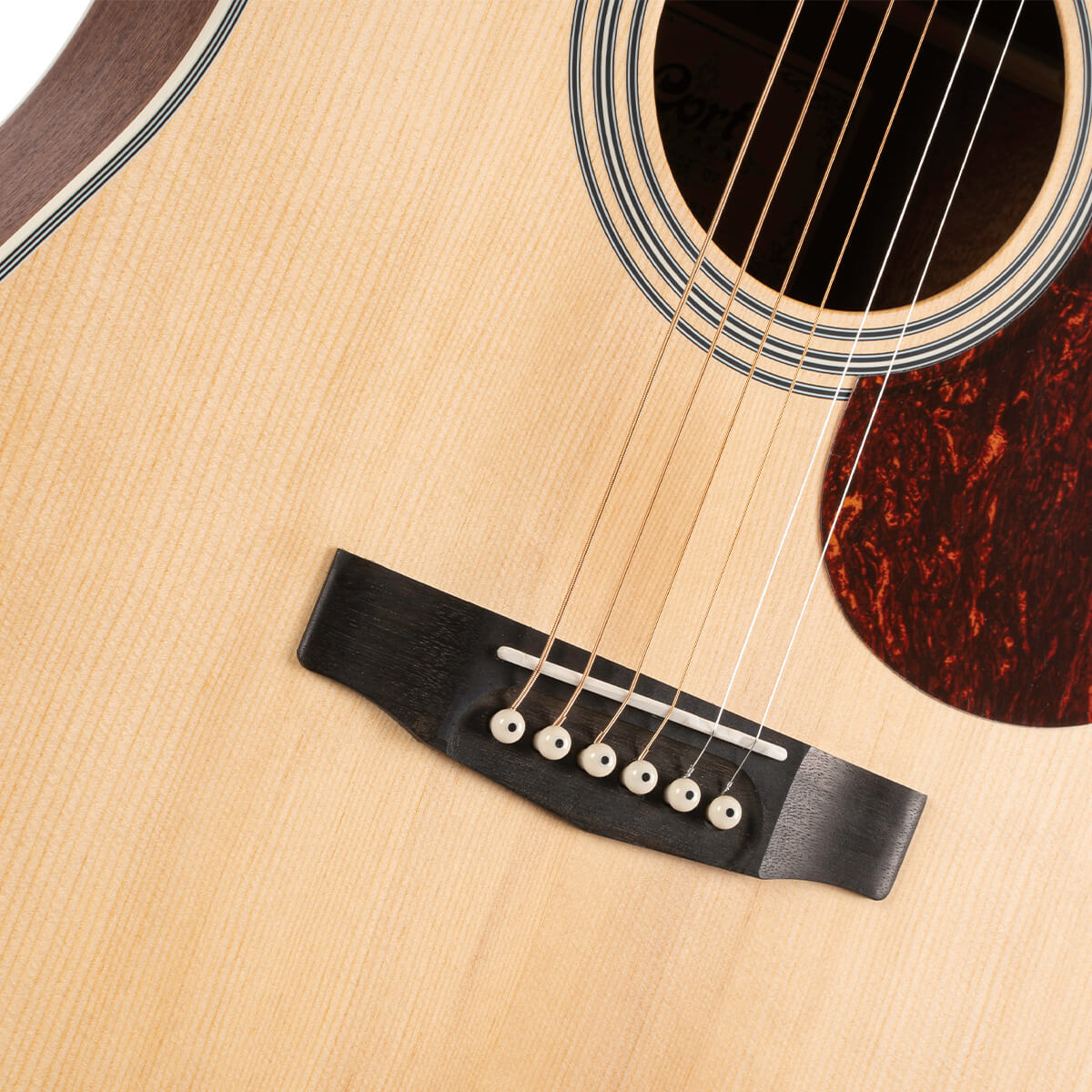

• Bone nut and compensated bone saddle transmit full overtone stack.
• Rosewood bridge pins add node mass (~3 % sustain lift).
• Die-cast sealed tuners (18 : 1) lock pitch across climate swings.
• D’Addario EXP16 coated strings (.012–.053) triple bright-life vs un-coated PB.

9 | Real-World Personas

Singer-Songwriter Café. Spruce top cuts chatter; phase button kills wedge boom.
Bluegrass Jam. Dread bass hammers chop chords; cutaway slides capture solo breaks.
Worship Leader. Built-in tuner frees pedalboard slot; CE304T volume knob = quick mute.
Street Busker. Lam mahogany resists knocks; open-pore hides micro-dings.

10 | Sustainability Snapshot

Sitka from PEFC Pacific stands; mahogany laminates with FSC chain-of-custody. Water-borne sealer drops plant VOC ≈60 % compared with polyester. Spruce off-cuts pelletised to fuel factory kilns—zero timber waste.

11 | Care & Maintenance

Maintain 45–55 % RH; open-pore tops equalise faster—use a sound-hole humidifier in winter. Dual-action rod (4 mm Allen): ⅛-turn ≈0.1 mm relief shift. Oil rosewood board twice a year; avoid silicone polishes on matte surfaces.

12 | Closing Verdict — Workhorse Punch, Plug-and-Play Ease

MR500E-OP serves dreadnought thump, map-friendly cutaway reach and stage-simple electronics in one wallet-sensible bundle. It’s the rehearsal-room hammer that graduates to FOH without a hitch—an honest spruce/mahogany workhorse ready to clock in nightly.

Specifications
